Дрон- Jiangsu Retek Motion Co., Ltd.

×

LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

Electric Spec.
Max. P(W)	Voltage(V)		Max. I.(A)		KV	No-load Current(A)			Resistance(mΩ)	Poles	Motor Dim.(mm)	Stator Dim.(mm)		Mounting (mm)	N.W.(g)	Prop.(inch)
960(7S)	2S-7S		40(7S)		1800	1			60	14	φ27.5*11.7	φ22*8		M3-19*16	36	5"~6"
Thrust Testing Data
Propeller		kV Value		Throttle(%)			U(V)	Current(A)		Thrust(g)			Power(W)	Efficiency(g/W)
5055		1800KV		50%				10.68		767			256.3	2.992
				60%				16.3		1025			391.2	2.620
				70%			24	22.52		1222			540.5	2.261
				80%				30.22		1454			725.3	2.005
				90%				38.13		1627			915.1	1.778
				100%				40		1690			960.0	1.760
5045		1800KV		50%				8.92		670			214.1	3.130
				60%				13.78		899			330.7	2.718
				70%			24	18.94		1110			454.6	2.442
				80%				25.29		1342			607.0	2.211
				90%				32.86		1580			788.6	2.003
				100%				33.1		1580			794.4	1.989
5055		1950KV		50%				8.38		679			201.1	3.38
				60%				13.31		914			319.4	2.86
				70%			24	19.34		1169			464.2	2.52
				80%				26.24		1384			629.8	2.20
				90%				33.33		1587			799.9
				100%				39		1745			936.0	1.86
5045		2100KV		50%				8.13		540			170.7	3.163
				60%				11.93		716			250.5	2.858
				70%			21	16.68		925			350.3	2.641
				80%				22.08		1114			463.7	2.403
				90%				28.75		1335			603.8	2.211
				100%				36.55		1544			767.6	2.012
5055		2100KV		60%			21	14.13		830			296.7	2.797
				70%				20.15		1063			423.2	2.512
				80%				27.28		1277			572.9	2229

LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

The LN2207 is a brushless motor with multiple KV options (1700KV/1900KV/2400KV), designed specifically for RC drones and FPV (First-Person View) systems. The "2207" in the model number indicates the s...

Параметры продукта

×

LN2807 6S 1300KV 5S 1500KV 4S 1700KV Бесщеточный двигательForRC FPV Racing RC Drone Racing

Отправить запрос

Электрические характеристики.
Макс. П (Вт)	Напряжение (В)		Макс. Я. (А)	КВ	Ток холостого хода (А)		Сопротивление (мОм)	поляки	Мотор Дим. (мм)	Статор Разм. (мм)	Монтаж (мм)	Н.В. (г)		Опора. (дюйм)
1400(6С)	2С~6С		55(6С)	1350	1.8		82	14	φ33*19,6	φ28*7	М3-19*19	52		6"~7"
Данные испытаний на тягу
Пропеллер		КВ Value		Дроссель		Напряжение (В)		Текущий (А)	Упорная сила (г)	Скорость (об/мин)	Входная мощность (Вт)		Эффективность (г/Вт)
ГФ7037*3		1350		10%		24.67		0.3	41	3149	6.49		6.28
				20%		24.67		1.1	166	6076	26.40		6.30
				30%		24.65		2.74	375	8822	67.57		5.55
				40%		24.64		5.23	628	11254	128.97		4.87
				50%		24.61		8.18	866	13189	201.29		4.30
				60%		24.57		12.66	1178	15327	311.03		3.79
				70%		24.52		19.13	1570	17586	468.99		3.35
				80%		24.47		26.52	1955	19595	648.99		3.01
				90%		24.40		35.37	2367	21357	862.91		2.74
				100%		24.31		45.81	2722	22783	1113.52		2.44
HQ7X37*3		1350		10%		24.67		0.3	36	3171	6.24		5.80
				20%		24.67		1.0	153	6120	25.19		6.07
				30%		24.67		2.63	352	8909	64.78		5.43
				40%		24.65		5.11	607	11291	126.01		4.82
				50%		24.63		8.05	846	13339	198.27		4.27
				60%		24.59		12.61	1159	15420	309.96		3.74
				70%		24.53		19.10	1529	17642	468.40		3.26
				80%		24.48		26.90	1915	19605	658.61		2.91
				90%		24.41		35.80	2274	21297	873.78		2.60
				100%		24.32		46.19	2537	22602	1123.37		2.26

LN2807 6S 1300KV 5S 1500KV 4S 1700KV Бесщеточный двигательForRC FPV Racing RC Drone Racing

Серия бесщеточных двигателей LN2207 поставляется с тремя различными номиналами напряжения: 1700 кВ, 1900 кВ и 2400 кВ. Номинал KV представляет собой константу скорости двигателя, указывающую увелич...

Параметры продукта

×

LN8313 Series 12S Brushless Drone Motor (85KV / 95KV / 100KV) – 4kg Thrust

Отправить запрос

Electric Spec.

KV

Battery Spec.

Max.Thrust Force

(KG)

Recom.Takeoff Welght

(KG)

System Weight

(KG)

Max.Current

(A)

Max.Con.Current

(A)

Motor Dim.

(mm)

Stator Dim.

(mm)

Mounting Dim.

(mm)

Prop.

(inch)

100

12-14

15.5

5-7

0.65

65

15

Ö91*37.5

Ö83*13

8-M3*10

3011

Thrust Testing Data
Propeller	U(V)	Throttle(%)	Thrust(g)	I(A)	P(W)	Efficiency(g/W)
3011	46.05	40%	2530	4.6	211.6	14.7
	46.02	46%	3373	6.6	303.6	12.3
	46.03	48%	3675	8.3	381.8	10.6
	46.03	56%	4845	11.0	506	9.5
	46.03	60%	5610	13.6	625.6	8.7
	46.01	66%	6728	16.0	736	8.0
	46.0	70%	7348	20.0	920	7.4
	45.99	74%	8338	24.0	1104	7.0
	46.0	78%	9100	27.2	1251.2	6.6
	46.01	80%	9613	29.6	1361.6	6.2
	45.98	90%	12100	41.3	1899.8	5.9
	45.9	95%	13350	46.6	2143.6	5.3
	45.85	100%	14499	52.3	2405.8	4.9

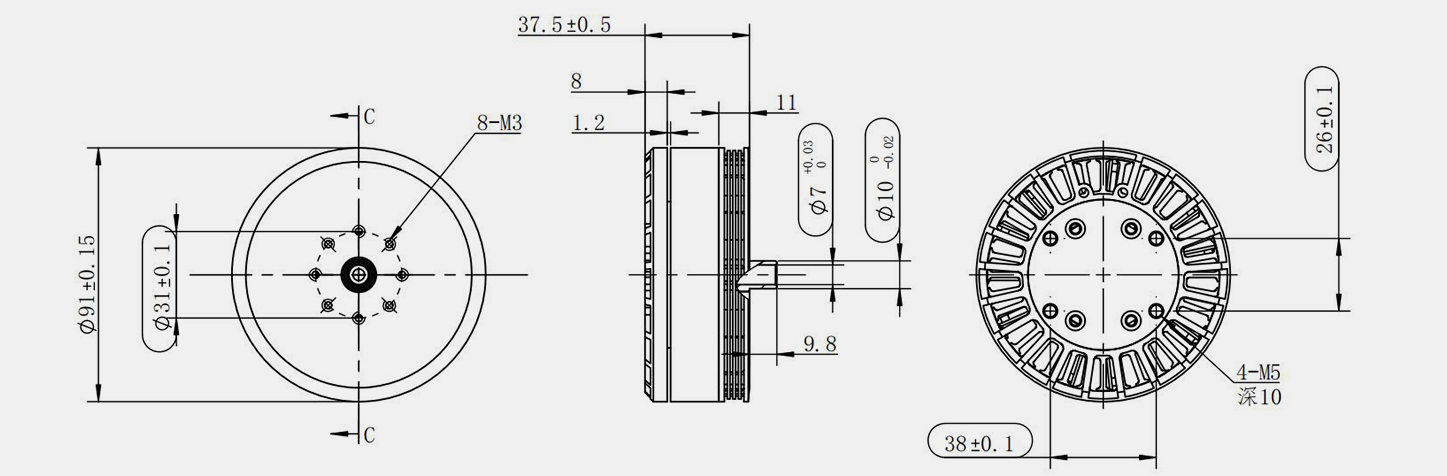

LN8313 Series 12S Brushless Drone Motor (85KV / 95KV / 100KV) – 4kg Thrust

The LN8313 Series 12S Brushless Drone Motor is designed for high-power UAV applications, delivering exceptional performance and reliability. Available in 85KV, 95KV, and 100KV options, this motor is i...

Параметры продукта

×

LN10018 Series 12S Brushless Drone Motor (90KV / 100KV) – 5kg Thrust High-Power UAV Motor

Отправить запрос

Electric Spec.
KV	Battery Spec.	Max. Thrust Force (KG)	Recom.Takeoff Weight (KG)	System Weight (KG)	Max. Current (A)	Max. Con. Current (A)		Motor Dim.		Stator Dim. (mm)	Mounting Dim. (mm)	Prop. (inch)
85	12S-14S	26.5	11-13	1.45	100	15		φ109*42.5		φ100*18	8-M4*10	36"
Thrust Testing Data
Propeller	Voltage(V)		Throttle（%)	Thrust(g)	Current(A)		Power(W)		Speed(RPM)		Efficiency(g/W)
36"	53.6V		40%	5072	8.31		444.9		1815		11.19
	53.6V		45%	6212	1.21		600.3		2014		10.16
	53.6V		50%	7466	4.61		782.5		2208		9.47
	53.6V		52%	8017	6.21		868.3		2286		9.08
	53.6V		54%	8642	7.91		959.4		2367		8.89
	53.6V		56%	9202	9.82		1061.2		2446		8.57
	53.6V		58%	9832	1.82		1168.4		2523		8.31
	53.6V		60%	10451	3.92		1281.1		2604		8.01
	53.6V		62%	11139	6.22		1404.3		2682		7.78
	53.6V		64%	11810	8.53		1527.6		2755		7.55
	53.6V		66%	12516	1.13		1666.9		2837		7.37
	53.6V		68%	13188	3.53		1795.6		2912		7.16
	53.2V		70%	13866	6.44		1951		2993		6.95
	53.1V		75%	15943	4.95		2406.6		3189		6.45
	53.0V		80%	17968	4.48		2915.8		3384		6
	53.6V		90%	24287	2.6		4427.4		3780		5.23
	53.6V		100%	26462	100		5338.5		4047		5.05

LN10018 Series 12S Brushless Drone Motor (90KV / 100KV) – 5kg Thrust High-Power UAV Motor

The LN10018 Series 12S Brushless Drone Motor is a high-performance UAV motor designed for heavy-lift multirotors and professional drones. Available in 90KV and 100KV options, this motor delivers up to...
